Garmin ECHOMAP UHD 93sv GN+ GT54UHD And LiveScope Plus Bundle

9” Touchscreen GPS with UHD Sonar, Lake Maps and Transducer!

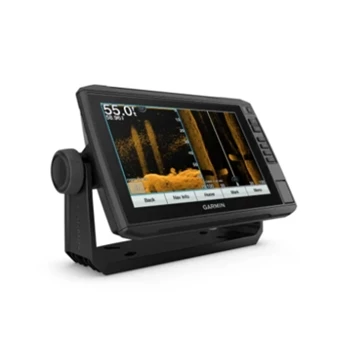

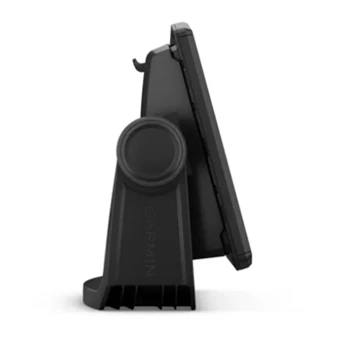

Garmin’s echoMAP UHD 93sv provides a bright 9″ keyed assist touchscreen display, built in U.S. Lake Charts, a rugged and reliable housing and an ultra high definition scanning sonar with GT54UHD Transom Mount transducer for excellent charting and fishfinding at an affordable price point!

Charts

Built-In Garmin Navionics+ Inland Lake charts! The internal charts provide 1 foot contours, provide a clear understanding of the lake floor and provide navigational aids, spot soundings, tides and currents. If you are wanting or needing more information or other coverage areas than the preloaded chart offers – such as auto guidance, 3D views, shallow water shading and more, you can expand your mapping options via the single microSD card slot and Garmin’s extensive line of Garmin Navionics Vision+ charts!

Sonar

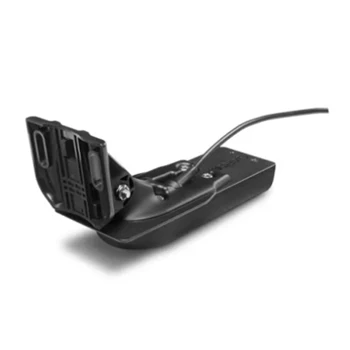

With built in UHD scanning sonar and the included GT54UHD Transducer you can see crisp images of structure and fish below and to the left and right of your vessel. The GT54UHD Transducer with depth and temperature readings will provide UHD Frequency of 800kHz for clear images down to 200′ deep and UHD SideVu Frequency of 1200kHz reaching 125′ left and right for a total of 250′ to a max depth of 30′. CHIRP High Wide frequencies of 150-240kHz provide enhanced images with excellent target separation down to 800′. The GT54UHD also includes a SideVu Frequency of 455kHz which will increases the Maximum Range to 500′ side to side – Please note all depths listed are maximums and will change based on water clarity and conditions. Plus, with the included transducer, you also get full access to Garmin’s QuickDraw Contours software. With QuickDraw Contour mapping software built in and a compatible transducer, you’re instantly able to create personalized fishing maps with 1’ contours as you’re steering the boat across the waters. No special knowledge or software is required, simply fish and Garmin takes care of the rest. Maps will be instantly displayed and the best part is that these are your maps. Store up to 2 million acres of quickdraw contour maps – keep them for yourself or share within the Garmin QuickDraw community.

Garmin LiveScope Plus System Included

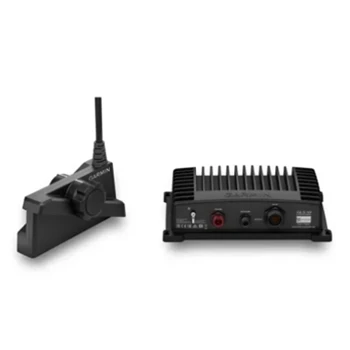

Garmin’s Livescope Plus offers real time views of fish and structure below your boat! 35% improved target separation, better resolution, reduced noise and clearer images are just a few of the benefits of the Livescope Plus. Includes GLS 10 Box and LVS34 Transducer along with 3 mounting options including the perspective mode mount!

Networking

With limited networking options, the 93sv offers WiFi, NMEA2000, NMEA0183 and ethernet networking to connect 1 additional 7/9-inch Garmin ECHOMAP UHD display, Panoptix Livescope Plus, AIS, VHF, Autopilots and more. The built in Wi-Fi connects wirelessly with the ActiveCaptain App that can be downloaded to your smart phone or tablet and allows you to update or purchase/download new charts quickly and easily. With Ethernet networking you can now enjoy sharing sonar and user data between two ECHOMAP UHD or ECHOMAP Ultra units (7x and 9x models only) via Ethernet cable. Full NMEA 2000 connectivity allows your ECHOMAP UHD to share information such as engine data, Fusion-Link audio information, autopilot connectivity. The 93sv is also FORCE Trolling motor compatible enabling you to pair your display with the FORCE to route to waypoints, follow tracks and more!

If you are looking for a combination GPS/Fishfinder and don’t want to break the bank, the ECHOMAP UHD from Garmin is a top choice.

Replaced 010-02342-01 and 010-02523-01

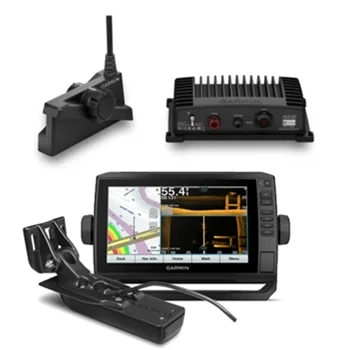

The Garmin ECHOMAP UHD 93sv GN+ GT54UHD and LiveScope Plus Bundle includes the standard Garmin ECHOMAP UHD 93sv with GT54UHD Transducer and standard Garmin LiveScope Plus Sonar System. See real-time sonar views on a 9-inch hybrid touch display in addition to Ultra High Definition ClearVu and SideVu sonar. The ECHOMAP 93sv GN+ includes Garmin Navionics+ U.S. Lake Charts.
Special Buy!

Instant Savings with Value Bundle!
