Garmin ECHOMAP UHD 93sv With GT54 And LiveScope Plus Bass Boat Bundle

All-in-One Bass Boat Kit!

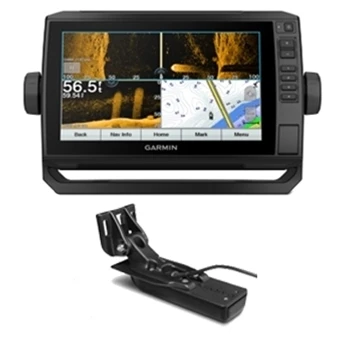

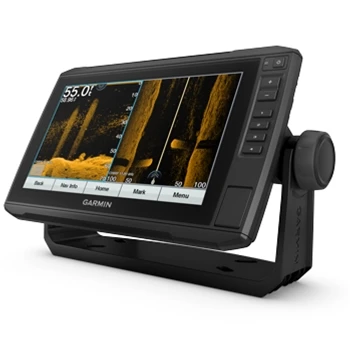

Garmin’s Garmin ECHOMAP UHD 93sv LiveScope Plus Bass Boat Bundle provides (2) 9-inch displays with bright 9″ keyed assist touchscreen displays. The ECHOMAP 93sv’s come preloaded with Garmin Navionics+ US Lake Charts. Also included, the Garmin Panoptix LiveScope PLUS system seamlessly integrates with both displays. Simply connect both displays and the LiveScope PLUS to the included GMS10 Network Port Expander and you have a completely integrated system. Connect one of the included GT54 transducers to either display, and see Ultra High Definition sonar on both display!

Charts

Built-In GN+ U.S. Lake Maps! You will receive coverage for over 17,000 inland lakes with up to 1 foot contours, providing a clear understanding of the lake floor and provides navigational aids, spot soundings, tides and currents. If you are wanting or needing more information or other coverage areas than the preloaded chart offers – such as auto guidance, 3D views, shallow water shading and more you can expand your mapping options via the single microSD card slot and Garmin’s extensive line of Garmin Navionics Vision+ charts, sold separately.

Sonar

With built in UHD scanning sonar and the included GT54UHD Transducer you can see crisp images of structure and fish below and to the left and right of your vessel. The GT54UHD Transducer with depth and temperature readings will provide UHD Frequency of 800kHz for clear images down to 200′ deep and UHD SideVu Frequency of 1200kHz reaching 125′ left and right. CHIRP High Wide frequencies of 150-240kHz provide enhanced images with excellent target separation down to 800′. The GT54UHD also includes a SideVu Frequency of 455kHz which will increases the Maximum Range to 500′ side to side – Please note all depths listed are maximums and will change based on water clarity and conditions. Plus, with the included transducer, you also get full access to Garmin’s QuickDraw Contours software. With QuickDraw Contour mapping software built in and a compatible transducer, you’re instantly able to create personalized fishing maps with 1’ contours as you’re steering the boat across the waters. No special knowledge or software is required, simply fish and Garmin takes care of the rest. Maps will be instantly displayed and the best part is that these are your maps. Store up to 2 million acres of quickdraw contour maps – keep them for yourself or share within the Garmin QuickDraw community.

If you are looking for an all-in-one Boat in a Box Bass fishing kit- this is THE kit for you!

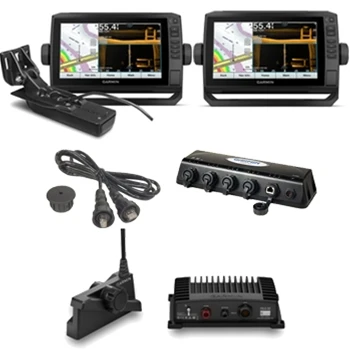

Garmin ECHOMAP UHD 93sv LiveScope Plus Bass Boat Bundle includes (2) Garmin ECHOMAP UHD 93sv GN+ with GT54 Transducer, (1) LiveScope PLUS Sonar System, (1) Garmin GMS10 Network Port Expander and (1) Garmin 20′ Marine Network Cable. Fish can’t outwit this setup!
Special Buy!
Instant Savings with Value Bundle!
