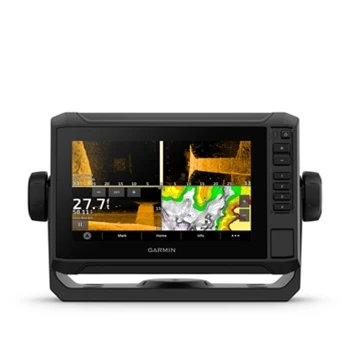

Garmin ECHOMAP UHD2 73sv GN+ With Transducer

7” GPS/Fishfinder with Inland Lake Mapping, Keyed Assist Touchscreen and CHIRP ClearVu/SideVu Sonar!

A rugged and reliable chatplotter with exceptional underwater imaging! Designed around a bright, sunlight viewable 7″ Keyed Assist Touchscreen the ECHOMAP UHD2 73sv combination unit enhances your day on the water by providing detailed mapping and crisp, clear sonar imaging.

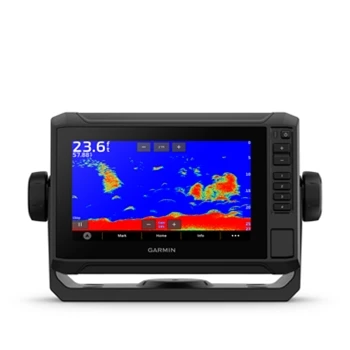

With built in UHD scanning sonar, the 73sv comes packaged with a GT54UHD Transducer so that you can see crisp images of structure and fish below and to the left and right of your vessel. The GT54UHD Transducer with depth and temperature readings will provide UHD Frequency of 800kHz for clear images down to 200′ deep and UHD SideVu Frequency of 1200kHz reaching 125′ left and right for a total of 250′ to a max depth of 30′. CHIRP High Wide frequencies of 150-240kHz provide enhanced images with excellent target separation down to 800′. The GT54UHD also includes a SideVu Frequency of 455kHz which will increases the Maximum Range to 500′ side to side – Please note all depths listed are maximums and will change based on water clarity and conditions.

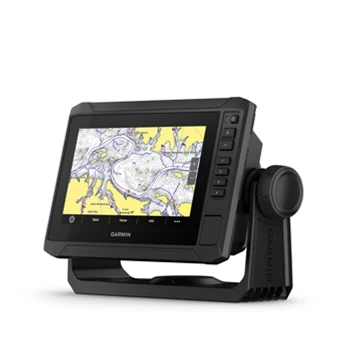

Detailed Charts! Preloaded with Garmin Navionics+ Mapping for the Inland Lakes, the integrated chart data covers over 18,000 lakes with 1′ contours and can easily be enhanced with additional charting via the microSD card slot. Garmin offers several Premium chart options for this unit. Available by region, Garmin Navionics Vision+ charts include both coastal and inland coverage. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. These charts include 1-year of daily updates, ensuring your chart data is always current! Premium features include High Resolution Relief Shading, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and More! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase.

Livescope Compatible! View advanced, Real time sonar images of structure, bait and fish swimming around your boat. Pair your ECHOMAP UHD with a Livescope Sonar system and view underwater detail like never before! Built with AHRS (Attitude Heading Reference System), Livescope ensures your sonar view stays stable even in rough seas! LiveScope Down provides images of structure and swimming fish up to 200′ below your boat while the Live Scope Forward will assist you in scouting and locating fish that are swimming ahead of your cast up to 200′. Easily adjustable, the Live Scope can be set to the mode that works best for your fishing needs. With exceptional views and sonar capabilities you can not only see what going on in real time, you may with just a bit of practice even be able to differentiate between fish species! *Livescope System Sold Separately. LiveScope sonar will not share with multiple displays wirelessly.

Network options in the 73sv include NMEA2000 and WiFi Connectivity. NMEA2000 allows you to connect and share numerical data across devices such as Autopilots, digital switching, AIS and more. Wi-Fi connectivity is built into every UHD2 73sv and allows your to wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 6″, 7 or 9″ Chartplotter while also enabling you the ability to pair with Garmin’s Active Captain app on your compatible smartphone for access to the OneChart™ feature, software updates and more! Wirelessly connect to a Force Trolling Motor (sold separately) to create and follow routes, navigate to waypoints. control speed and even check battery! Panoptix LiveScope sonar will not share wirelessly to other displays.

For an affordable, advanced combination unit look no further than the ECHOMAP UHD2 from Garmin!

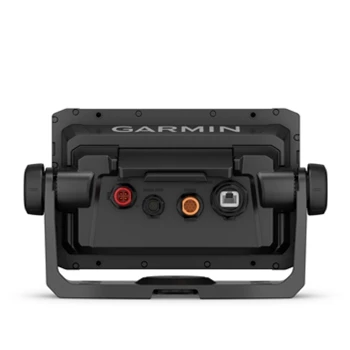

*Please note, This display has a single 12 Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.

A Bright 7” Keyed-assist touchscreen, The ECHOMAP UHD2 73sv includes detailed Garmin Navionics+ US Inland lake Maps with over 18,000 lakes providing 1’ contours. Enhanced sonar capabilities include CHIRP Sonar with ClearVu and SideVu offering crisp, clear high contrast views all around your vessel when paired with the included GT-54 Transducer. Livescope Sonar Compatible.
