Garmin ECHOMAP Ultra 126sv GN+ With Transducer And LiveScope Plus Bundle

12-Inch Chartplotter/Fishfinder with GN+ Charts

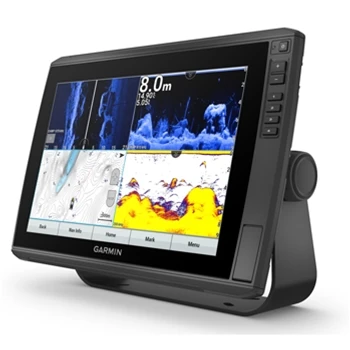

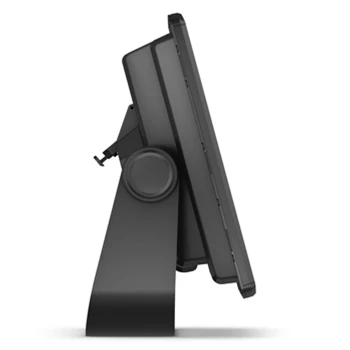

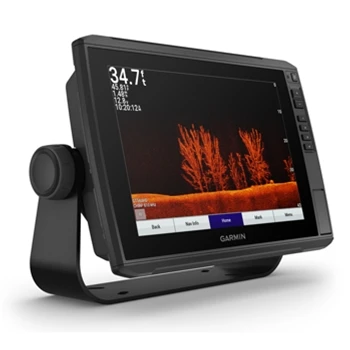

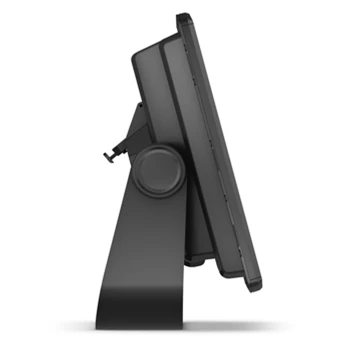

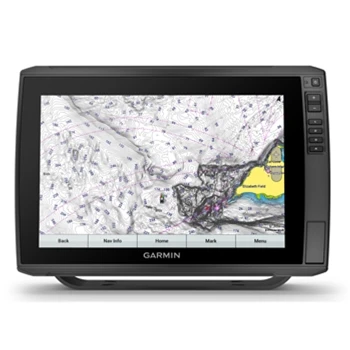

The Garmin ECHOMAP Ultra 126sv GN+ features a 12-inch keyed-assist IPS touch display with 10Hz internal GPS receiver and preloaded Garmin Navionics+ charts including coverage for US inland lakes and coastal waters. The included Garmin Navionics+ charts provide Auto Guidance+ technology* which provides the best path to a waypoint taking into consideration your vessel. Navigate with ease with the ECHOMAP Ultra 126sv! The Garmin ECHOMAP Ultra 126sv is the largest in the ECHOMAP series.

The ECHOMAP Ultra 126sv with Transducer includes the GT56UHD Transom Mount Transducer. The included transducer provides high wide CHIRP sonar by operating on a frequency range of 150-240kHz. In ideal water conditions, the GT56 can reach depths of 800′ while the UHD (Ultra High Definition) ClearVu and SideVU sonar provides images of fish and structure below your boat in crisp clear detail – so clear that you can even see fish hanging off branches of submerged trees! Plus with GT56UHD you can now even distinguish between bigger and smaller fish and even see individual fish targets! This is an all in one transducer! UHD ClearVu images will reach 200′ below the boat, while the SideVu sonar offers 2 frequency settings for an 20% greater range!

While the Garmin ECHOMAP Ultra 126sv is preloaded with Garmin Navionics+ charts, there is a premium chart option available, sold separately. The Garmin Navionics Vision+ charts provide additional detail for the coverage area of your choice including High Resolution Relief Shading, Aerial Imagery, Satellite Overlay and more! Garmin Navionics Vision+ charts are sold on SD/microSD card and require the use of the Garmin ActiveCaptain app to access premium features.

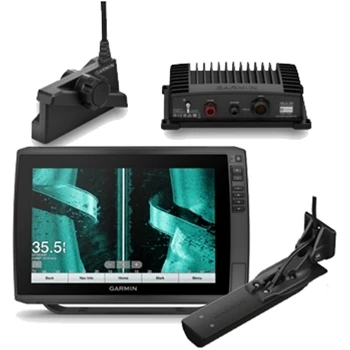

The 126sv LiveScope Plus bundle includes the full LiveScope Plus sonar system. See real-time sonar images including structure, bait and fish swimming around your boat with the Panoptix LiveScope Plus Sonar System. Garmin LiveScope imagery is better than ever! The LiveScope Plus System provides 35% improved resolution, reduced sonar artifacts, crisper, sharper images and improved target separation over previous models.

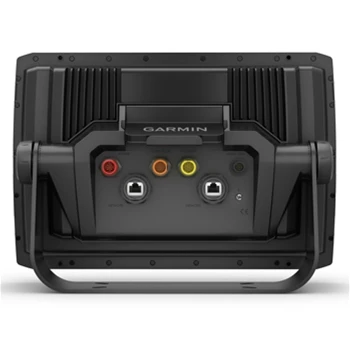

The Garmin ECHOMAP Ultra is equipped with 1 NMEA0183 input and output port, Wireless connectivity, and NMEA2000. Easily connect heading sensors, autopilot, digital switching, FUSION-Link and more! And when your day of fun on the water is over, the 126 quickly and easily disconnects from the quick-disconnect mount. Since all the cables are plugged into the mount there’s no need to mess with plugging and unplugging cables. Simply remove the head unit and store it away for safe keeping!

Wanting multiple displays, but not needing all the bells and whistles of a fully networkable unit? The ECHOMAP Ultra has you covered, with 2 network ports the 126sv will allow you to connect and share sonar, waypoints and routes with other ECHOMAP Ultra 10″ and 12″ units as well as ECHOMAP Plus 7″ and 9″ units. Plus with Built-in WIFI you get access to the ActiveCaptain app – access maps and the QuickDraw Community, plan a trip, pre-fish a lake and even get texts and emails on your display (but that’s only if you want to, this can be turned off so you can enjoy a carefree day on the water without being bothered).

*Garmin Auto Guidance is for planning purposes only and does not replace safe navigation options.

*Please note, This display has a single 12 Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.

The Garmin ECHOMAP Ultra 126sv GN+ with Transducer and LiveScope Plus Bundle includes the standard Garmin ECHOMAP Ultra 126sv GN+ with GT56UHD package with the standard Garmin LiveScope Plus package.
Instant Savings with Value Bundle!
