Garmin ECHOMAP Ultra 2 126sv GN+ With Transducer

12-Inch Chartplotter with Wireless Networking and UHD Sonar!

The Garmin ECHOMAP Ultra 126sv chartplotter/fishfinder features a 12-inch IPS keyed assist touchscreen with 1280 x 800 resolution. The 126sv includes a quick release bail mount allowing for easy mounting and unmounting of the head unit. Simply snap the 126sv out of the quick release mount while leaving cables plugged into the mount.

Multi-band GPS technology provides fast, 10Hz updates providing improved position accuracy and reception even in areas where signals may be weak. The ECHOMAP Ultra 2 has an easy-to-use interface with a modern operating system, updated graphics and new menu options.

The ECHOMAP Ultra 2 126sv with Transducer includes the GT56UHD Transom Mount Transducer. The included transducer provides high wide CHIRP sonar by operating on a frequency range of 150-240kHz. In ideal water conditions, the GT56 can reach depths of 800′ while the UHD (Ultra High Definition) ClearVu and SideVU sonar provides images of fish and structure below your boat in crisp clear detail – so clear that you can even see fish hanging off branches of submerged trees! Plus with GT56UHD you can now even distinguish between bigger and smaller fish and even see individual fish targets! This is an all in one transducer! UHD ClearVu images will reach 200′ below the boat, while the SideVu sonar offers 2 frequency settings for an 20% greater range!

If you desire a multi-unit marine setup, the ECHOMAP Ultra 2 is an ideal choice. Wireless networking lets you easily share sonar, waypoints and routes with a another ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter. Optional LiveScope sonar cannot be shared wirelessly. This wireless connectivity allows for multiple displays without the need to run network cables. Wireless connectivity doesn’t end there. Wirelessly connect to your Force Trolling Motor to navigate to waypoints, draw and follow routes and more! Garmin has truly considered ease-of-use when designing the ECHOMAP Ultra 2 series.

Capture and share your fish catches via the ActiveCaptain screen recording feature on your compatible smartphone. These recordings can be easily shared with friends! ActiveCaptain also allows for convenient software updates, access to the Garmin Quickdraw Community and more!

While the Garmin ECHOMAP Ultra 126sv is preloaded with Garmin Navionics+ charts for the U.S. coastal and inland areas, there is a premium chart option available, sold separately. The Garmin Navionics Vision+ charts provide additional detail for the coverage area of your choice including High Resolution Relief Shading, Aerial Imagery, Satellite Overlay and more! Garmin Navionics Vision+ charts are sold on SD/microSD card and require the use of the Garmin ActiveCaptain app to access premium features.

The 126sv is compatible with the full line of Garmin Panoptix products. Get real-time sonar images below your boat with the Panoptix LiveScope Plus Transducer System. See fish respond to your lure and adjust your fishing technique accordingly! Shop the Garmin Panoptix LiveScope Plus here.

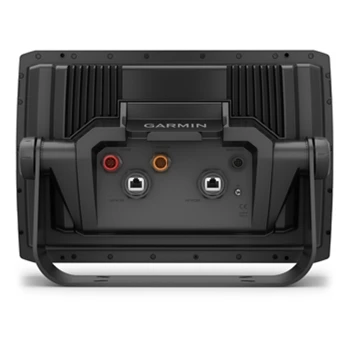

The Garmin ECHOMAP Ultra 2 is equipped with (1) NMEA0183 input and output port, (1) 12-pin sonar port, (2) Garmin network ports, Wireless connectivity, and NMEA2000. Easily connect heading sensors, autopilot, digital switching, FUSION-Link and more!

*Please note, This display has a single 12-Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.

Display Resolution: 1280 x 800 pixels

Accepts Data Cards: 2 microSD Card Slots

Sensors: GPS, GLONASS, GALILEO, BEIDOU

Receiver: 10 Hz

Auto Guidance: Built-In Auto Guidance+

Sonar: Single Channel CHIRP, 70/83/200 kHz, L, M, H CHIRP

ClearVu: Built-in 260/455/800/1000/1200 kHz

SideVu: Built-in 260/455/800/1000/1200 kHz

Garmin Network Network Ports: 2 Large Connector Ports

12-Pin Transducer Ports: (1) 12-Pin Scanning Sonar

The Garmin ECHOMAP Ultra 2 126sv GN+ with Transducer is a versatile chartplotter/fishfinder with a 12” display and preloaded Garmin Navionics+ U.S. Inland and Coastal charts. The included GT56UHD-TM Transducer provides ultra-high-definition sonar for photo-like images of what’s beneath the surface. Wirelessly network with select Garmin displays and Force Trolling Motors and enjoy multi-band GPS for improved position accuracy!
