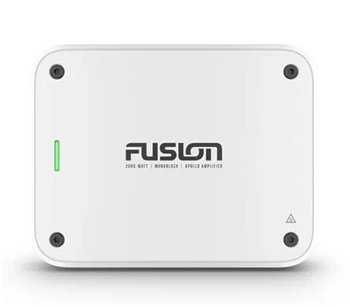

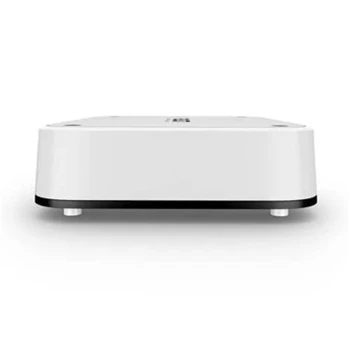

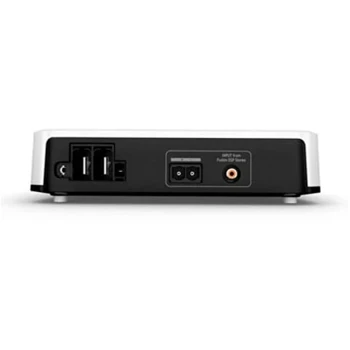

Garmin Fusion Apollo Monoblock Amplifier

Add Power to Your Fusion Subwoofer for Amazing Sound Quality

The Fusion Monoblock Amplifier is designed to add extra power to a compatible Fusion Subwoofer providing quality sound with minimal distortion. The is a great addition to your Fusion entertainment system. Built with performance and longevity in mind- the Apollo series amplifiers have been tested to ensure they are protected against salt, temperature, vibration and UV. With conformal-coated PCBS materials- the Monoblock’s circuit board has an added layer of protection from the elements! Simple installation with the included mounting brackets, LED indicators for easy identification of electrical issues and ignition protection making this a top choice.

CEA-2006 Power Rating:

650 watt RMS x 1 @ 14.4 V input – 4 ohm < 1% THD

Total Rated Output Power 2 ohm (Watts):

1100 watt RMS x 1 @ 14.4 V input – 2 ohm < 1% THD

Peak Power:

2000 watts

Input Sensitivity:

2 V RMS

Input Impedance:

22k ohm

Operating Voltage:

10.8 V – 16 V DC

Current consumption (StandBy):

< 5 mA @ 14.4 V input

Current consumption (Max):

87 A

Fuse rating:

125 A electronic fuse (no replacement necessary)

Protection circuits:

Reverse voltage

Input under/over voltage

Over temperature

Output short circuit

The Fusion Monoblock Marine Amplifier adds extra power to your compatible Apollo stereo system. Specifically designed to power a subwoofer- the Monoblock provides 2000-watts of peak power, 650W RMS! The Fusion Apollo Amplifiers are compatible with Fusion DSP-enabled marine audio equipment.
