Wind Kit with 2 Displays!
Garmin’s GMI/GNX Wired Sail pack provides sailors and anglers alike with important wind and water information. Package with a GMI 20 and GNX 20 Marine Instrument Display, gWind and Airmar DST810 Transducer you will have all the wind and water information you could want or need!

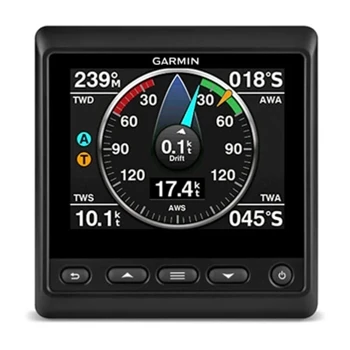

The GMI 20 features a large, brilliant 4” color display and includes extra-large digits that are easily readable from a distance or wide angle. The GMI 20 brings forth enhanced daylight readability due to its impressive high contrast color scheme and anti-glare finish. Nighttime visibility is also heightened by the backlight dimmer and a night mode setting that offers the user the choice of full-color, red-black, or green-black color schemes. The Garmin GMI 20 Marine Instrument Display connects to the NMEA 2000 network allowing you to view information on the display including GPS speed, water depth and temperature, wind direction and wind speed, as well as additional data from connected NMEA 2000 devices such as engine data, fuel level, and many more marine and vessel parameters. The GMI 20 also provides the user with customizable default profiles for use with powerboats, sailboats, fishing, and engine/fuel profiles. The instrument is easily installed with a low profile flush mount or custom flat mount option and receives power from your NMEA backbone.
Packaged with each Sail pack is a GNX20 display. Each GNX 20 allows the user to select how they want to see their information. Choose from a white or color background with black digits to clearly show water depth, boat speed thru water temp and over 50 additional marine and boat parameters. Customizable for both sailboat and powerboat owners, you have the option to choose from 5 display configurations or customize the pages to display the data that is most important to you! Glass bonded with anti-glare lens coating makes the GNX 20 easy to see night or day!
The included gWind Transducer provides superior accuracy at low wind speeds while also providing excellent linearity. Twin-Fin technology with 3-bladed propeller offers accurate True Wind Speed (TWS) in lighter air while the twin-fin design also gives more stability to True Wind Angle (TWA)

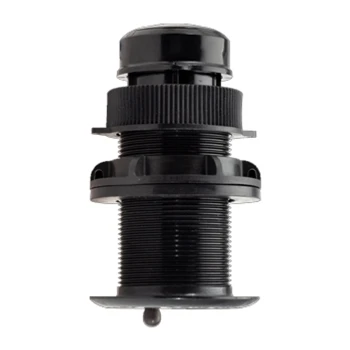

Airmar’s DST810 Thru-Hull Smart transducer is a multi-sensor transducer that can read depths up to 330 ft. and provides a fast and efficient 5 Hz water speed signal output with an operating frequency of 235 kHz and a beamwidth of 10×44 degrees. In short, the DST810 offers precise depth, speed, and temperature readings with altitude sensing for heel/trim and pitch/roll inputs which is then shared via the NMEA 2000 network and GNX 20 instrument display. Wireless connectivity with your GNX 52 wired sail pack via Bluetooth enables your DST810 transducer to be calibrated through Garmin’s Cast App via your compatible smartphone or tablet which allows for flawless calibration at multiple heel angles and speeds. For the ultimate depth and speed instrument, the Garmin GNX Wired Sail Pack 52 is the perfect addition to your vessel.

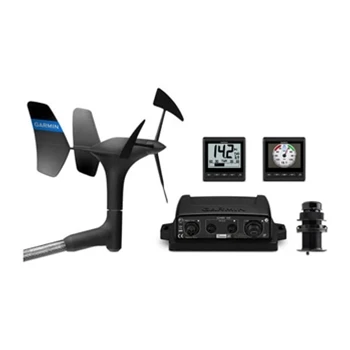

The Garmin GMI/GNX Wired Sail Pack 52 includes the GMI20, GNX20, gWind Wired Transducer and Airmar DST810 transducer. The GMI 20 provides a bright, color display and the GNX 20 has a highly visible monochrome display. The Airmar DST810 transducer is a thru hull transducer and provides depth, speed and temperature data.
