Garmin GNX Wired Sail Pack 52

Know What’s Going on With the Wind and the Water!

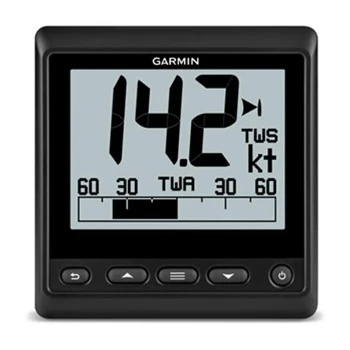

The Garmin GNX Wired Sail Pack 52 is the ultimate addition to your sailing vessel and aids in providing you with accurate sailing and racing data, right at your fingertips. Included with every wired sail pack are two GNX instrument displays that offers each user with a high-visibility, glass-bonded backlit monochrome display with customizable backlight colors allowing you to see in bright or low light conditions. Plug-and-play installation is flawless with Nexus, Garmin chartplotters, NMEA 2000 and USB connectivity setups. Depth, boat speed, water temperature and 50-plus marine and boat parameters are beautifully displayed on your GNX instrument displays with high contrast digits that are scalable up to 36mm.

Included with your Sail Pack is a gWind wired transducer that features twin-fin technology and a 3-blade propeller providing more accurate True Wind Speed (TWS) and more stable True Wind Angle (TWA) information. Garmin’s design of this transducer ensures superior accuracy at low wind speeds and offers excellent linearity as well. When your GNX wind marine instrument is interfaced through your NMEA 2000 network, two data fields and a digital wind rose will simultaneously display true and apparent wind data, steering guidance, boat speed, and more. Having this information right at your fingertips ensures you will have this crucial data right when you need it most.

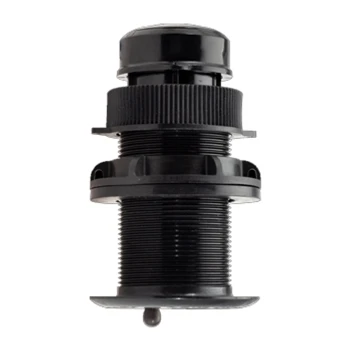

Airmar’s DST810 Thru-Hull Smart transducer is a multi-sensor transducer that can read depths up to 330 ft. and provides a fast and efficient 5 Hz water speed signal output with an operating frequency of 235 kHz and a beamwidth of 10×44 degrees. In short, the DST810 offers precise depth, speed, and temperature readings with altitude sensing for heel/trim and pitch/roll inputs which is then shared via the NMEA 2000 network and GNX 20 instrument display. Wireless connectivity with your GNX 52 wired sail pack via Bluetooth enables your DST810 transducer to be calibrated through Garmin’s Cast App via your compatible smartphone or tablet which allows for flawless calibration at multiple heel angles and speeds. For the ultimate depth and speed instrument, the Garmin GNX Wired Sail Pack 52 is the perfect addition to your vessel.

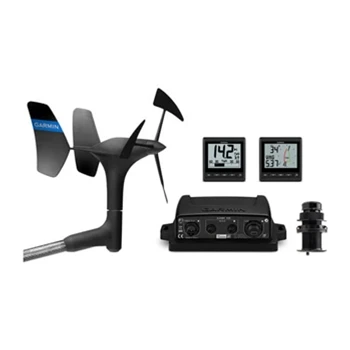

The Garmin GNX Wired Sail Pack 52 includes the GNX Wind, gWind Wired Transducer, GNX 20 and Airmar DST810 transducer. The GNX wind and GNX 20 displays are monochrome LCD displays. The Airmar DST810 transducer is a thru hull transducer and provides depth, speed and temperature data.
