Garmin GPSMAP 1042xsv GN+ Chartplotter/Fishfinder With Transducer

10-Inch Display with Garmin Navionics+ Charts and All-In-One Transducer

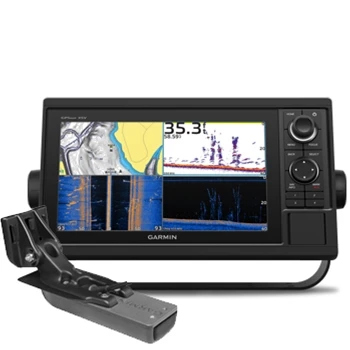

Garmin’s GPSMAP 1042xsv with transducer and GN+ Charts provide detailed chart coverage for coastal and lake waters. Packaged with a GT52 Transducer for High Wide CHIRP, ClearVu and SideVu scanning the GPSMAP 1042xsv GN+ offers a bright, keyed 10” display and includes CHIRP sonar with ClearVu and SideVu scanning capabilities!

Display:

Built around a 10.1” diagonal WSVGA display, the GPSMAP 1042xsv offers a crisp, clear 1024×600 pixels screen with keyed controls ensuring complete control of your unit even in the roughest of seas. Waterproof to IPX7 standards, the 1042xsv includes both bail and flush mount options and is built with 2SD card slots and internal memory for up to 5,000 waypoints, 50,000 track points, 50 saved tracks and 100 routes. This powerhouse GPS/Fishfinder is a top contender for those looking for a solid, rugged and reliable display!

Charting:

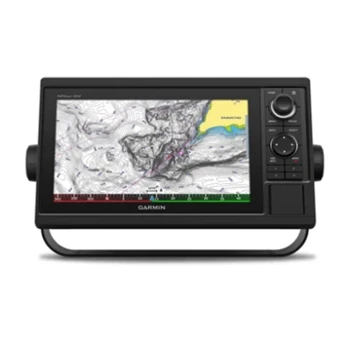

Each GPSMAP 1042xsv comes preloaded with Garmin Navionics+ detail for the Coastal and Inland waters throughout the US including AutoGuidance+ technology. Offering detail-rich charts of coastal waters, lakes and rivers, the built-in charting now includes auto-routing solutions giving you a suggested path to follow thru channels, inlets, marina entrances and more. (*please note, AutoGuidance is for planning purposes only and should not replace safe navigation) Preloaded Garmin Navionics Charts include detailed coverage of the entire U.S. coasts, lakes, rivers and inland waterways, plus Alaska and Hawaii. Canada coverage of coastal British Columbia, the Great Lakes, the St. Lawrence Seaway, New Brunswick and Nova Scotia. Coverage includes Bermuda, the Bahamas, Baja California, the Gulf of California, Johnston Atoll and Palmyra Atoll/Kingman Reef.

Sonar:

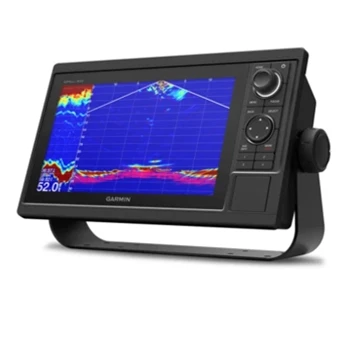

Built with a 1kW Single Channel CHIRP sounder, and packaged with a GT52HW transom mount transducer, the 1042xsv provides High Wide CHIRP scanning sonar as well as ClearVu and SideVu sonar showing crisp, clear near photolike detail below your vessel. Fully compatible with Panoptix All seeing sonar, your sonar options really are endless when it comes to the GPSMAP.

Network Support:

Fully Networkable, the GPSMAP 1042xsv offers two network ports for the addition of multiple displays, Radar, Sonar Modules, SiriusXM and more. If adding more than two network components, please note that a GMS10 port expander will be required (sold separately). In addition, the GPSMAP 1042xsv supports both NMEA0183 and NMEA2000 (NMEA2000 starter kit required, sold separately) for connection to VHF, AIS and other NMEA communication devices.

Premium Charting Options:

The Garmin GPSMAP GN+ displays are compatible with Garmin Navionics Vision+ charts, Garmin’s premier chart offering. Garmin Navionics Vision+ charts include both coastal and lake coverage within the region of your choice. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. Regions are larger than previous charting from Garmin and provide High Resolution Relief Shading, Auto Guidance+ routing, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and 1-year of free daily updates via the Garmin ActiveCaptain app! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase via the ActiveCaptain app with a compatible smartphone or tablet. All premium chart options are available in the region of your choice and sold separately.

For a rugged and reliable combination GPS/Fishfinder with keyed controls, the GPSMAP 1042xsv with GN+ is a top choice!

*Please note, This display has a single 12 Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.

The Garmin GPSMAP 1042xsv GN+ is a multifunction display with preloaded Garmin Navionics+ charts featuring coastal and inland chart content for the US and Canada with Auto Guidance+ technology and 1-year of free daily updates via the ActiveCaptain app. The included GT52HW transducer provides CHIRP Traditional Sonar and CHIRP ClearVu/SideVu. View sonar, charts and network accessories on the sunlight readable 10-inch keypad-controlled display!
