Garmin GPSMAP 743xsv GN+ GXM54 Weather Bundle

7-Inch Multifunction Display with Garmin Navionics+ Charts

The GPSMAP 743xsv combination GPS/Fishfinder from Garmin with 7” touchscreen display and 10Hz GPS/GLONASS/GALILEO internal antenna quickly and efficiently connects to satellites ensuring you lock into position sooner and your map updates quicker – no more waiting on delayed map redraws. Sunlight readability and visibility from any angle the GPSMAP 743 features edge-to edge glass with a smaller footprint, and includes both flush or bracket mount options with the included kits.

Display:

A 7” WSVGA, 1024×600 resolution display, the GPSMAP 743X SV is a widescreen version of a typical SVGA display! Waterproof to IPX7 standards and fully customizable, the 743xsv offers split screen options for viewing charts, optional sonar, radar, FLIR cameras and more!

Charting:

Preloaded with Garmin Navionics+ detail each 743 XSV includes coverage for the Coastal and Inland waters throughout the US including AutoGuidance+ technology. Offering Detail-rich charts of coastal waters, lakes and rivers the built-in charting now includes auto-routing solutions giving you a suggest path to follow thru channels, inlets, marina entrances and more. (*please note, AutoGuidance+ is for planning purposes only and should not replace safe navigation) Preloaded Garmin Navionics Charts include detailed coverage of the entire U.S. coasts, lakes, rivers and inland waterways, plus Alaska and Hawaii. Canada coverage of coastal British Columbia, the Great Lakes, the St. Lawrence Seaway, New Brunswick and Nova Scotia. Coverage includes Bermuda, the Bahamas, Baja California, the Gulf of California, Johnston Atoll and Palmyra Atoll/Kingman Reef.

Sonar :

Built with a 1kW Single Channel CHIRP sonar, the 743xsv also includes ClearVu and SideVu sonar capability when paired with the appropriate 12 Pin transducer (transducer required for sonar and sold separately). Fully compatible with Panoptix All seeing sonar, your sonar options really are endless when it comes to the GPSMAP.

Network Support:

Fully Networkable, the GPSMAP 743xsv offers a single network port for the addition of multiple displays, Radar, Sonar, SiruisXM and more. If adding more than one network component, please note that a GMS10 port expander will be required (sold separately). In addition, the GPSMAP 743 supports both NMEA0183 and NMEA2000 (NMEA2000 starter kit required, sold separately) for connection to VHF, AIS and other NMEA communication devices.

Premium Charting Options:

The Garmin GPSMAP GN+ displays are compatible with Garmin Navionics Vision+ charts, Garmin’s premier chart offering. Garmin Navionics Vision+ charts include both coastal and lake coverage within the region of your choice. Data is sourced from Garmin and Navionics in order to provide you with exceptional detail. Regions are larger than previous charting from Garmin and provide High Resolution Relief Shading, Auto Guidance+ routing, High Resolution Satellite Imagery, Sonar Imagery, Aerial Photography, SideScan Images and 1-year of free daily updates via the Garmin ActiveCaptain app! Garmin Navionics Vision+ charts require premium content to be downloaded post purchase via the ActiveCaptain app with a compatible smartphone or tablet. All premium chart options are available in the region of your choice and sold separately.

Offering a smaller footprint, Garmin’s GPSMAP 743xsv sure doesn’t lack in features! If you are in the market for a 7” Multi-function, combination unit look no further than the GPSMAP 743xsv chartplotter with GN+ mapping!

*Please note, This display has a single 12 Pin Transducer Port. Garmin 12 Pin orange connectors do not support speed thru water via a speed wheel. This display will provide speed over ground via GPS. Speed thru water can be achieved by adding a NMEA Smart sensor, sold separately.

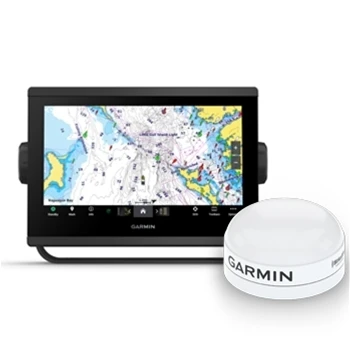

The Garmin GPSMAP 743xsv GN+ GXM54 Weather Bundle features the standard Garmin GPSMAP 743xsv GN+ Chartplotter/Fishfinder bundled with the Garmin GXM 54 Sirius XM Marine Receiver. SiriusXM Weather Subscription Required.
Instant Savings with Value Bundle!
Order Now Through December 31st, 2023 and Get a $100 Mail-In Rebate from SiriusXM! here to View Rebate Details.
