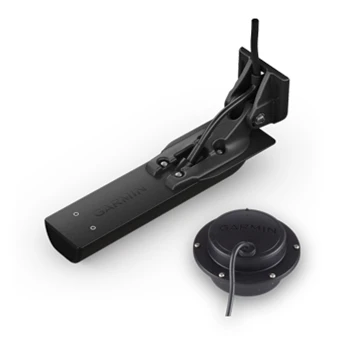

Garmin GT36-TM And GT15M-IH Transducer Bundle

Bundle Package includes GT36 Transom Mount and GT15M In-Hull Transducers.

The GT36-UHD Transom Mount Transducer provides exceptional images below and to the sides of your vessel in near photo-like detail. With a downward facing element and frequencies ranging from 800kHz to 1,000kHz images are crisp and clear below and to the left and right of your boat.

• Ultra High Definition ClearVu:0.8MHz (800kHz) CHIRP Range: 790-850 kHz
• Ultra High Definition SideVu:1.0MHz (1,000kHz) CHIRP Range: 940-1100 kHz
• Maximum Depths: 400′ UHD ClearVu & 250′ each side UHD SideVu – 500′ total
• 12 Pin Connection
• 25′ Transducer Cable Length

Garmin’s GT15M In Hull Transducer is a perfect solution for anglers that want to install a transducer inside a fiberglass hull. The GT-15 M IH offers Mid-Band CHIRP traditional sonar (85-165kHz) with a 600W power rating.

Includes GT15 M-IH In-Hull Transducer, 4 Plastic tanks, Mounting Hardware and Installation Guidelines.

• Frequency: CHIRP 85-165 kHz
• Transmit power: 600W
• Max Depth: 1,900 ft Freshwater
• 8 Pin Connection
• 20′ Transducer Cable Length

The GT36/GT15 transducer combination is great for boaters who want to be able to speed across the water and keep a good lock on bottom depth and take advantage of DownVu / SideVu. The GT15 In Hull transducer provides traditional sonar while the GT36 Transom Mount will provide SideVu & DownVu once you slow down to fish. The transducers connect in a Y-Cable for a single connection to your compatible Garmin unit.

Garmin’s GT36-TM and GT15M-IH Transducer bundle includes the GT36 UHD Transom Mount transducer packaged with the GT15M In Hull transducer providing CHIRP Sonar along with CHIRP ClearVu and CHIRP SideVu Scanning Sonar. Designed for vessels with a fiberglass hull and a deadrise from 0° to 25°.
