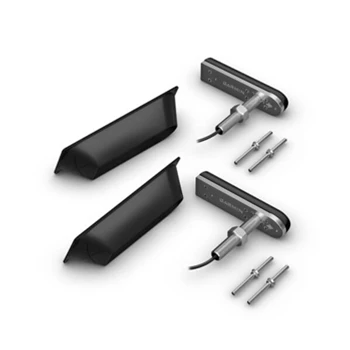

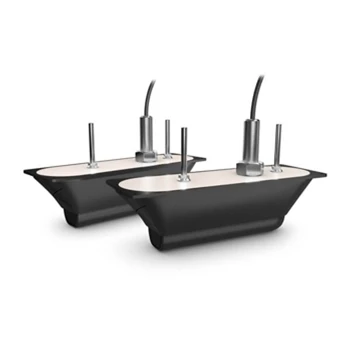

Garmin GT56UHD Thru Hull Transducer (Pair)

The Garmin GT56UHD Thru Hull Transducer Pair provides Ultra High Definition SideVu Scanning sonar with 20% greater range than previous models. The UHD sonar is crystal clear, providing detail of targets and structure below your boat. The GT56UHD single transducer is suitable for boats with a deadrise between 5-25-degrees.

Cable Length: 25 ft with Y-Cable

Frequency: Traditional High-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100)

Power: Traditional 350 W; ClearVü/SideVü 500 W

Beamwidth: Traditional CHIRP: 24-16; ClearVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz; SideVü 0.52 x 52 @ 1000 kHz, 0.64 x 35 @ 800 kHz, 1.1 x 52 @ 455 kHz

Maximum depth: Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft

Provides Depth and temperature

Garmin 12-Pin Connector

The GT56TH is compatible with the following Garmin Fishfinders:

GPSMAP 8400xsv and GPSMAP 8600xsv Chartplotters

GPSMAP 7x3xsv, GPSMAP 9x3xsv and GPSMAP 12x3xsv

ECHOMAP Ultra Chartplotters

ECHOMAP UHD sv Chartplotters

The Garmin GT56UHD all-in-one transducer pair features Ultra High-Definition ClearVu and SideVu scanning sonars and high wide CHIRP traditional sonar providing excellent sonar clarity at speed! This fairing block style thru hull transducer is suitable for boats with less than a deadrise between 5-25 degrees .
