Garmin Livescope PLUS System

Livescope Sonar with 35% Improved Resolution and Less Noise!

See real-time sonar images including structure, bait and fish swimming around your boat with the Panoptix LiveScope Plus Sonar System. Garmin LiveScope imagery is better than ever! The LiveScope Plus System provides 35% improved resolution, reduced sonar artifacts, crisper, sharper images and improved target separation over previous models.

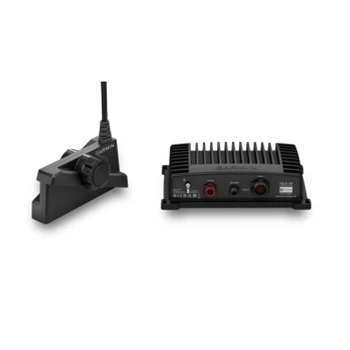

Consisting of the Garmin GLS 10 black box and LVS34 Transducer, the LiveScope Plus system is compatible with a wide range of Garmin chartplotters. The Garmin GLS10 black box connects to your compatible Garmin display through a network connection, while the LVS34 transducer connects to the GLS 10 black box.

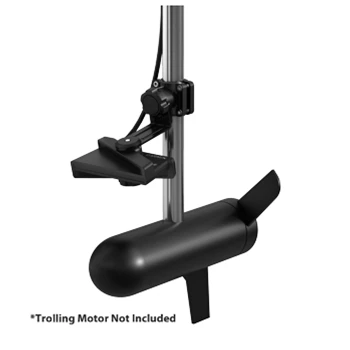

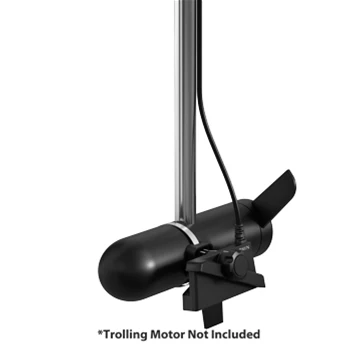

Select the mode that best suits your fishing style! The LiveScope Plus System can provide Forward Mode, Down Mode and Perspective Mode with the included mounts. Select Forward Mode for a front and slight down image, Down mode for a picture of what is directly below your boat and Perspective mode for a top-down view. Perspective mode is provided with the use of the included Garmin Perspective Mode Mount for LVS34 Transducers. The LiveScope Plus system also includes a trolling motor shaft and barrel mount.

The LVS34 transducer provides sharper images than previous LiveScope models with fewer artifacts. A 35% improvement on target separation over the previous model allows you to view individual fish targets easier than ever! Rough conditions are no problem for the LVS34 transducer. Its built-in AHRS, Attitude Heading Reference System keeps your sonar image stable for easy viewing even in turbulent waters. Easily distinguish artifacts below your boat with the selection of one of 7 vivid color palettes. Color palettes include Aqua, Caribbean, Lava and more. These palettes allow users to see fish a structure more clearly by improving contrast.

Transducer Specifications

Transmit Power- 500W

Power Usage- 21W Typical, 58W Max

Fuse- 7.5A

Minimum Depth- 3′

Beamwidth- 20 degrees x 135 degrees

Transducer Cable Length- 20ft

Max Depth- 200′ Down and Forward

Looking to upgrade your existing Garmin Panoptix LiveScope system to the Garmin Panoptix LiveScope Plus? Upgrading is easy- you may keep your existing GLS10 black box and cabling and simply replace your LVS32 transducer with the LVS34. Purchase just the LVS34 transducer here

The Garmin Panoptix LiveScope Plus is compatible with the following Garmin displays:

Garmin GPSMAP 8400/8600 Series

Garmin GPSMAP x2 Plus Series

Garmin GPSMAP x3 Series

Garmin ECHOMAP Ultra Series

Garmin ECHOMAP UHD 7″ and 9″ Displays

Garmin’s Livescope Plus offers real time views of fish and structure below your boat! 35% improved target separation, better resolution, reduced noise and clearer images are just a few of the benefits of the Livescope Plus. Includes GLS 10 Box and LVS34 Transducer along with 3 mounting options including the perspective mode mount!
